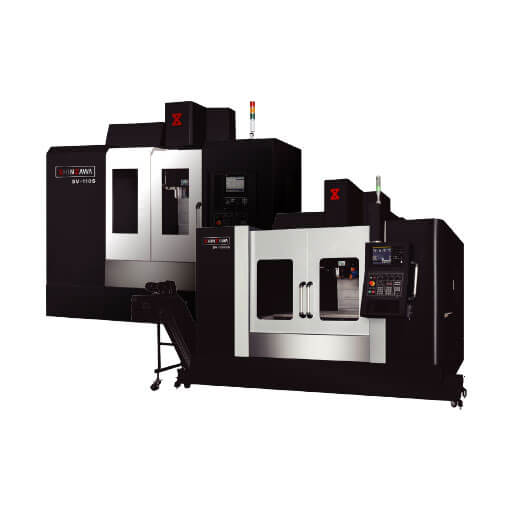

SV-85S / 110S / 130S / 865S / 1165S / 1365S

Linear Guideway CNC Machine

The new enhanced overall structure design presents cutting performance and processing stability. Through FEA analysis, design and manufacture, whether it is mold, automobile, motorcycle, medical, aerospace, we will provide you with reliable and high-efficiency linear CNC machines based on the solid industry experiences.

The three-axis is designed with roller linear guideway rails to meet the needs of superb high-speed and highefficiency machining; easy sales and high utilization rate.

MF-320 CNC vertical machining centers linear way series is an economical and high-efficiency multiface machining solution. In addition to the standard configuration, it also has a rotary worktable for 3+2 axis milling applications.

Features

Characteristic

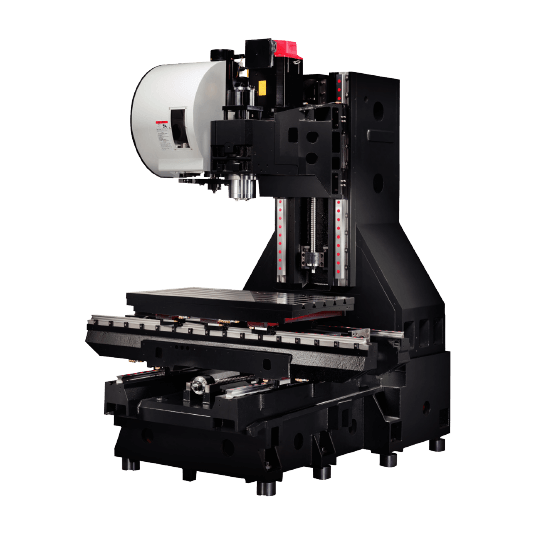

The linear CNC machine series employs high precision roller type linear ways.
The motor end parts on 3 axes are precision scraped before mounting and carefully pre-tensioned after assembly, enabling the transmission system to achieve lifetime stability.
The X-axis is equipped with 6 blocks.
Saddle and table are a box-type construction with an increased height on structural parts, featuring light weight and high rigidity.
A perfects combination for speed and structural stability.
Over sized base and column, reinforced column bottom and solid Z-axis structure assure vibration-free cutting.
Rigid ball screw with double nuts is driven with powerful servo motor.
Extra wide span between linear ways effectively upgrades dynamic accuracy.

Technology

Perfect Design for Structural Stability

The saddle and workbench are designed in a box structure. The height of the structural parts is increased, and it has the perfect design of light weight, high rigidity, speed, and structural stability. The main spindle aspect ratio is 1:1 design.

Double Nut Ball Screw

High rigidity double nut ball screw driven by high power axial servo motor.

Extra Large Base and Column

Strengthen the quality of the bottom of the machine and the thick and stable structure of the Z-axis to ensure no shaking during high-speed movement and cutting.Column width is up to 1200mm.

Three-Axis Transmission System Important Interface

Assembled after precision scraping. After rigorous assembly and pretensioning, the long-term stability of the transmission system is ensured.

A New Generation of Vertical Processing Machine

Provide the Best Performance on Rigidity, High Speed, and High Precision of Axial / Radial Cutting

Independent verification by a third party

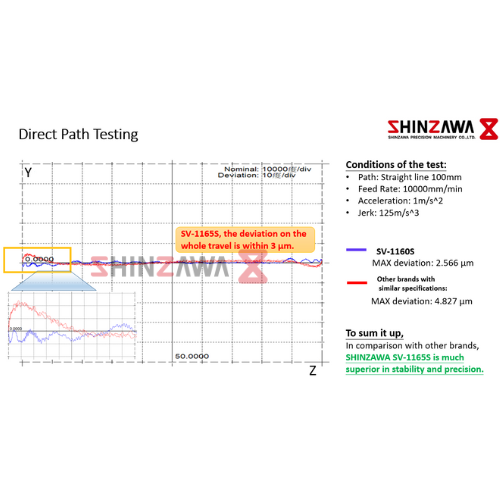

Our machines feature a high-rigidity one-piece casting structure, verified through dynamic testing conducted by third-party organization PMC. The results show that during high-speed machining at the top of the column, vertical displacement and spindle head oscillation remain within 3 μm, demonstrating exceptional vibration resistance and dimensional stability. These results are on par with leading Japanese and European brands, as evidenced by the test data shown below.

Cutting Capability

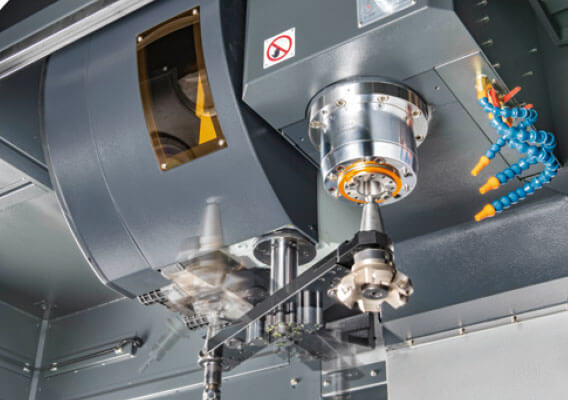

Arm type quick tool change mechanism

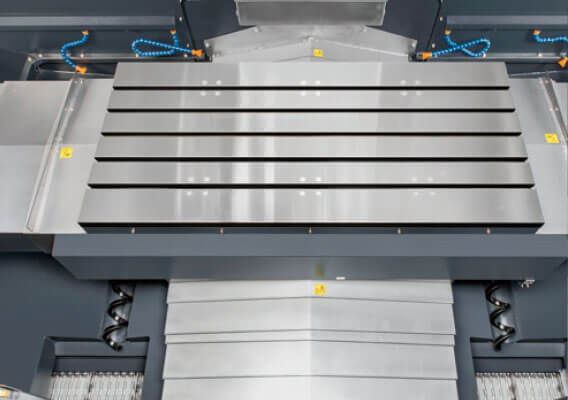

Y-axis left and right chip conveyor (optional)

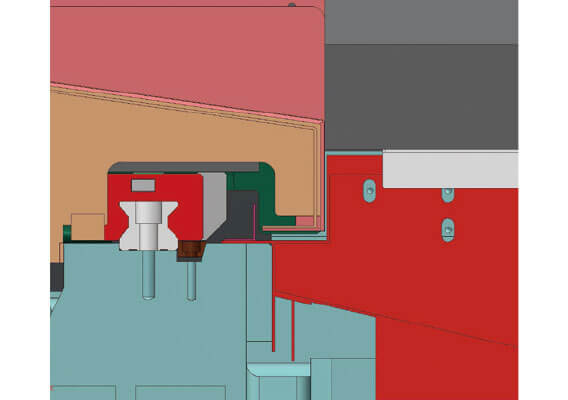

Y-axis unique maze design for chip

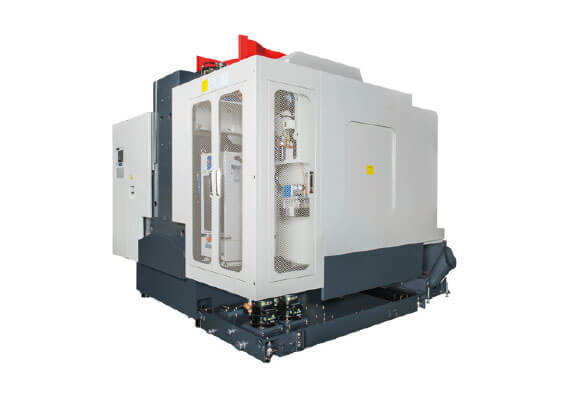

Hidden air pressure element

Specifications

Item	Unit	SV-85S	SV-110S	SV-130S
X / Y / Z axes travel	mm	850 x 600 x 600	1100 x 600 x 600	1300 x 600 x 600
Table size	mm	1000 x 600	1150 x 600	1400 x 600
Max. loading capacity	kg	800	900	1000
Spindle speed	rpm	10000 (Direct drive)
Spindle motor	kW	7.5 / 11
Spindle taper	-	BT-40
Tool capacity	Pcs	24T
Rapid traverse speed	m / min	36 / 36 / 30
Net weight	kg	6800	7000	7300

Item	Unit	SV-865S	SV-1165S	SV-1365S
X / Y / Z axes travel	mm	850 x 650 x 600	1100 x 650 x 600	1300 x 650 x 600
Table size	mm	1000 x 650	1250 x 650	1400 x 650
Max. loading capacity	kg	800	900	1000
Spindle speed	rpm	10000 (Direct drive)
Spindle motor	kW	7.5 / 11
Spindle taper	-	BT-40
Tool capacity	Pcs	24T
X / Y / Z Rapid Feedrate	m / min	36 / 36 / 30
Net weight	kg	6900	7100	7400

We reserve the right to modify the design and specifications without notice in advance.

Equipment

Standard Equipment

10,000rpm belt type spindle
Rigid tapping
Spindle air blast device
Fully enclosed splash guard
Heat exchanger for electrical cabinet
Automatic lubrication system
Spindle cooling system
Cooling system and coolant tank
LED work lamp
Foundation bolts and blocks
Tool box with tools
Operation and maintenance manual
Coolant flushing device
Flush gun

Optional Equipment

Coolant through spindle
Chip screw conveyor
Chip conveyor
Air conditioner for electric cabinet
4th axis rotary table
Linear scale for 3 axes
Automatic tool length measurement
CE format
SV-85/110/130 Spindle Speed:12,000 rpm belt drive
SV-110S/130S Spindle Speed:12,000/15,000 rpm direct drive
SV-110S/130S Spindle speed:20,000 rpm built-in
